MOSFET
MOSFETs (Metal Oxide Semiconductor Field Effect Transistors) are one of the most important types of transistors used in modern electronics. They are used in a variety of applications including power supplies, motor controllers and switching regulators.
The working principle of the MOS transistor is mainly to control the flow of electric current by using the field effect. It has three poles: gate, drain, and source. By applying a voltage between the gate and the source, the current between the drain and the source can be controlled. MOS tubes can be used as circuit elements such as switches or amplifiers.
A MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) is a voltage-controlled switch with three terminals: Gate (G), Drain (D), and Source (S).
Applying voltage to the Gate creates an electric field that allows current to flow between Drain and Source.
Removing the gate voltage stops the current (for enhancement-mode MOSFETs).
N-channel MOSFETs conduct when the gate is positive relative to the source; P-channel MOSFETs conduct when the gate is negative.
| MOSFET Type | Voltage Range | Key Advantages | Recommended Applications |
|---|---|---|---|
| Low-Voltage MOSFET | ≤ 100V | - Extremely low RDS(on) for high efficiency- Fast switching speeds for high-frequency applications- Minimal gate drive requirement- Compact packaging for dense PCB designs | - DC-DC converters for laptops, smartphones, and low-voltage power supplies- Battery Management Systems (BMS)- Low-voltage load switching and signal control |
| Super Junction MOSFET | 100–900V | - Ultra-low RDS(on) with high voltage capability- Excellent energy efficiency- High switching speed for high-power density- Reduced thermal stress | - High-efficiency power supplies and adapters- Solar inverters and industrial motor drives- Electric vehicle chargers and automotive electronics |
| Mid-Voltage MOSFET | 100–500V | - Balanced on-resistance and voltage handling- Reliable for industrial and automotive use- Fast switching for PWM-controlled loads- Good thermal stability | - Industrial motor controllers and drives- Power inverters and UPS systems- Automotive DC-DC converters and traction inverters |
Hornby Electronic is a leading supplier of MOSFETs and other electronic components. We offer a wide range of MOSFETs at competitive prices with fast and reliable shipping.
High Capacity: 6 billion semiconductor devices produced annually
Certified Quality: ISO 9001, ISO 14001, TS16949, OHSAS 18001, UL
Custom Solutions: OEM/ODM products, custom packaging, and printing
Reliable Service: Timely support, real-time problem solving, flexible management
Proven Track Record: Trusted by Haier, Huawei, Samsung, TW-Solar, and other global leaders
Explore Our Products
Produces Semiconductor Solutions for Modern Electronics
Low-Voltage MOSFETLow voltage MOSFETs Offer Broad Product Availability, Convenience and Ease of DesignThese Low-Voltage MOSFETs are suitable for a wide range of general-purpose applications such as: adapters, charger generations, battery-powered applications, motor control and drives, battery management systems, inverters, computing, mobile applications, and telecommunications.

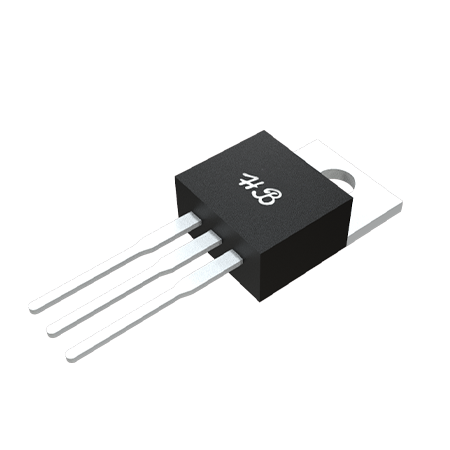

Low-Voltage MOSFET
Super Junction MOSFETA Super Junction MOSFET is a type of power MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designed to handle high voltages and currents efficiently, particularly in power electronics applications.Super junction MOSFETs have a unique structure that contains alternating P-type and N-type regions in the semiconductor material. This structure helps distribute the electric field more evenly throughout the device than conventional MOSFETs, resulting in better performance at higher voltages.Benefits of superjunction MOSFETs include lower on-resistance (RDS(on)), which reduces power loss and improves efficiency, especially in high-power applications such as power supplies, motor drives and inverters. They also have better switching characteristics due to reduced gate charge and switching losses.FeaturesLow on-resistanceUltra-low gate chargeHigh dv/dt capabilityHigh unclamped inductive switching (UIS) capabilityHigh peak current capabilityImproved transconductance performanceApplicationsPower SuppliesIT Hardware: data centers, servers, cloud, laptops, tabletsLighting: HID lamps and LED ballastsLED TV drivers and power suppliesSolar InvertersElectric and Hybrid VehiclesElectric and Hybrid VehiclesWhy Choose Our Super Junction MOSFETs?Enhanced EfficiencyOur Super Junction MOSFETs feature low RDS(on) and optimized switching performance, ensuring minimal energy loss in high-voltage operations. Perfect for industries requiring energy efficiency, such as renewable energy systems, industrial power supplies, and electric vehicles.High ReliabilityDesigned and tested with advanced manufacturing equipment, our MOSFETs deliver unmatched reliability, even in the most demanding environments. With our annual capacity of 6 billion devices, you can count on consistent quality and supply.Custom OEM SolutionsAs part of our commitment to meeting diverse customer needs, we offer customized Super Junction MOSFET solutions. Whether you need specific parameters or unique packaging, our OEM/ODM services are ready to support your requirements.Cost-Effective and ScalableBenefit from competitive pricing without compromising quality. Our large-scale production ensures affordability while maintaining precision and performance.Hornby Electronic, as a leading China diode manufacturer, proudly offers Super Junction MOSFETs, designed to meet the evolving demands of high-power electronics. Leveraging over 30 years of semiconductor expertise, we provide cutting-edge solutions tailored for superior performance and efficiency.
Super Junction MOSFET
Mid-voltage MOSFET
