Rectifier Diode

Rectifier Diode Rectifier diodes are essential components for converting alternating current to direct current in various electronic circuits. Known for their efficiency and reliability, they play a key role in power supplies, inverters and battery charging systems. These diodes ensure efficient power conversion, which is essential for the smooth operation of electronic equipment.Rectifiers Diodes include all Schottky diodes, rectifier diodes, fast recovery diodes, PIN diodes and photovoltaic diodes. Diode arrays are also available for multi-line applications.Different types of diodes and rectifiersWhen selecting a device for a particular application, it is important to consider other criteria in addition to current and voltage ratings, such as the low dropout of a power Schottky diode or the suitability of a field-effect rectifier for a particular current density and voltage. Ideal for heavy-duty high-voltage converter applications, ultrafast bipolar diodes offer increasingly soft recovery iterations. Bridge diodes ensure ruggedness, while signaling Schottky diodes provide high accuracy in a variety of applications.Rectifier Diode SupplierHornby Electronic manufactures rectifier diodes in a wide range of voltage and current ratings to meet the needs of many applications from small equipment to large industrial machinery.

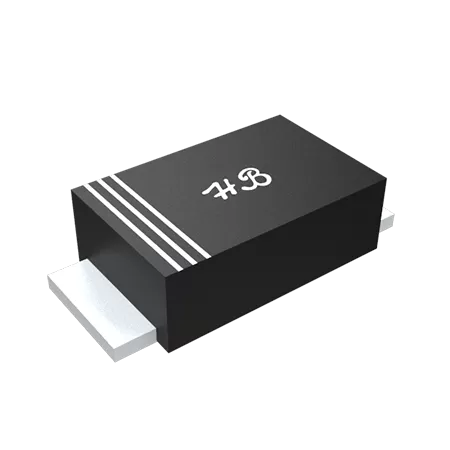

Small Signal Diode

Small Signal Switching DiodesA small signal diode refers to a type of PN junction diode that acts on low-voltage signals and is a small nonlinear semiconductor diode commonly used in electronic circuits. The junction area of this diode is very small, so the junction can reduce charge storage and low capacitance.ApplicationSmall signal diodes are commonly used in a variety of industries and applications, including:Consumer Electronics: In devices like smartphones, tablets, laptops, and televisions, small signal diodes are used for signal processing, rectification, and voltage regulation.Telecommunications: They are used in circuit protection and signal routing, ensuring that the transmission of signals in communication devices remains stable.Automotive Electronics: Small signal diodes are employed in automotive control circuits, lighting systems, and for protecting sensitive components in vehicle electronics.Industrial Electronics: In automation and control systems, they are used for switching, signal modulation, and noise suppression in sensors and actuators.Power Management: Used in power supply circuits for voltage regulation, over-voltage protection, and rectification in applications such as battery charging and power distribution.Signal Processing: Small signal diodes are integral to applications involving signal modulation, rectification, and waveform shaping in audio equipment, RF circuits, and digital systems.Medical Devices: In medical electronics, they can be found in devices such as diagnostic equipment, monitors, and medical imaging systems for signal handling and power management.Computer Hardware: They are used in computers, printers, and peripherals for data processing, signal rectification, and protection against surges or electrical noise.

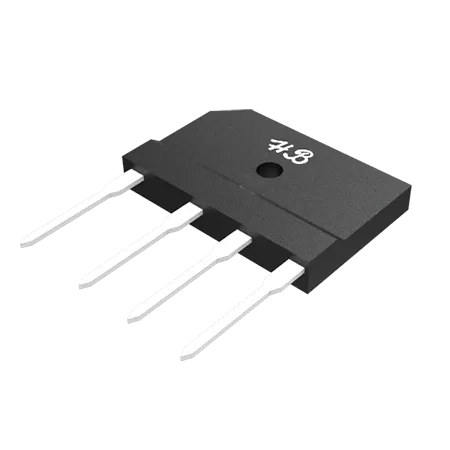

Bridge Rectifier

Bridge RectifierRectifiers convert AC signals to DC signals, and bridge rectifiers use diode bridges for this purpose. A diode bridge is a system of four or more diodes in a bridge circuit configuration where two of the circuit branches are branched by a third. Bridge rectifiers provide full-wave rectification.As a power component, bridge rectifier is widely used in various power supply equipment. How does a bridge rectifier work?Since current can only flow through a diode in one direction, the current must take different paths through the diode bridge depending on the polarity of the input. In either case, the polarity of the output remains constant. When there is an AC input, the current flows along one path during the positive half of the cycle and along the other path during the negative half of the cycle. This produces a pulsating DC output because the amplitude of the signal still changes, but the direction no longer changes.Benefits of Bridges Rectifier When performance, space and fast production are critical, rectifier bridges are the solution in many applications.Isolated compact housings are available in single-phase or three-phase topologies. Whether you prefer solder connections, screw connections, quick release connectors or busbars, Hornby Electronic has the right product for you.Main featuresRecommended for forced and natural air coolingEasy installation with or without heat sinksInsulated boxHigh inrush currentQuick connect, screw or solder terminalsApplicationsPrimary applications include battery chargers, small motor drive input rectifiers, power supplies and rectifiers for magnetic field control of DC motors with natural convection or forced cooling.Bridge Rectifier ManufacturerHornby Electronic manufactures high quality, cost-effective bridge rectifiers that provide full-wave rectification of AC power supplies for electronic equipment. Our range of bridge rectifiers meets the power supply and case style requirements of your electronic equipment.

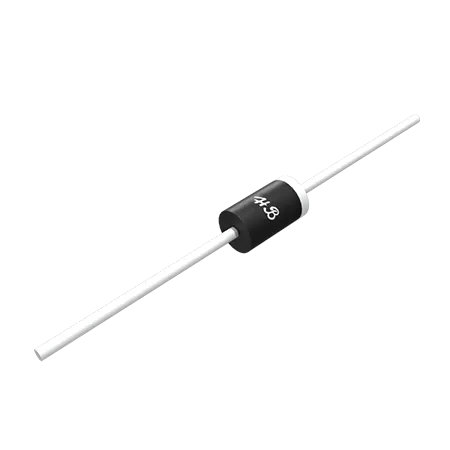

Protection Diode

Protection DiodesA protection diode is a type of Zener diode. Zener diodes can be used not only as protection diodes but also as constant voltage regulators. Protection diodes are specifically designed to protect electronic circuits from ESD and other transient pulses. Protection diodes protect electronic circuits from damage in the event of overvoltage, overcurrent, and surge.ApplicationsAutomotive applications;Audio and antenna protection;Data communications;Infotainment devices;High-speed data lines;Mobile communications;Personal computers and game consoles;Set-top boxes (STBs).

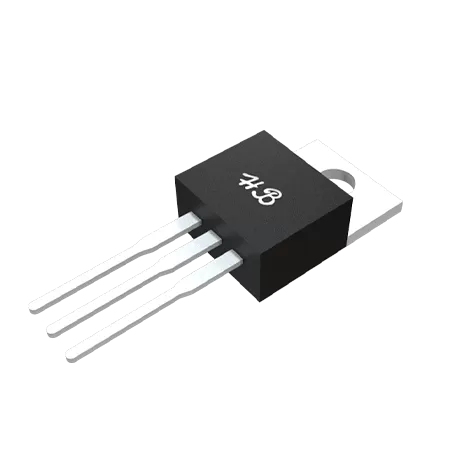

MOSFET

MOSFETMOSFETs (Metal Oxide Semiconductor Field Effect Transistors) are one of the most important types of transistors used in modern electronics. They are used in a variety of applications including power supplies, motor controllers and switching regulators.The working principle of the MOS transistor is mainly to control the flow of electric current by using the field effect. It has three poles: gate, drain, and source. By applying a voltage between the gate and the source, the current between the drain and the source can be controlled. MOS tubes can be used as circuit elements such as switches or amplifiers.MOSFET SupplierHornby Electronic is a leading supplier of MOSFETs and other electronic components. We offer a wide range of MOSFETs at competitive prices with fast and reliable shipping.

Transistor

Transistors can be used in communications, home appliances, security, consumer electronics and other scenarios, and are one of the core components of electronic circuits. A transistor's most basic and important feature is that it can amplify a weak electrical signal into a larger one.
